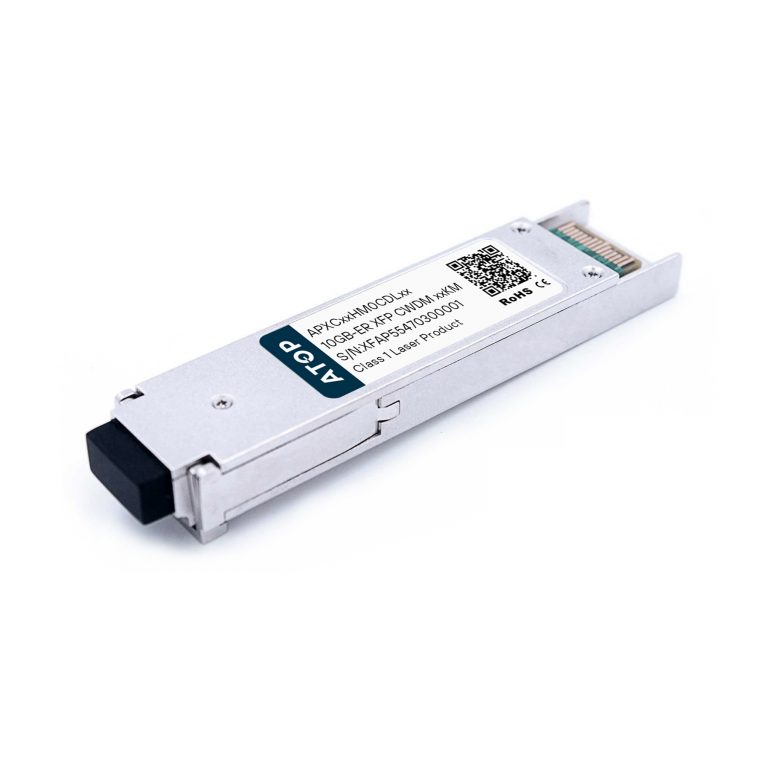

10GBASE-CWDM XFP for SDH/PDH 1471~1611nm 40km Transceiver
10GBASE-CWDM XFP for SDH/PDH 1471~1611nm 40km Transceiver
ATOP’s APXCxxHM0xDL40 Small Form Factor 10Gb/s XFP transceivers are compatible with XFP MSA Specification. They comply with SONET OC-192 IR-2, OC-192 IR-3,SDH STM S-64.2b, STM S-64.3b as well as with 10G Ethernet 10G BASE-ER/EW per IEEE802.3ae and 40km 10G Fibre Channel applications.
产品指标
封装 :
XFP
传输速率 :
10G
波长 :
1471~1611nm
光器件 :
EML/PIN
发光范围 :
-1~+4dBm
收端灵敏度 :
-16dBm
接口 :
LC
工作温度范围 :
C/I
传输距离 :
40KM
多速率兼容 :
N

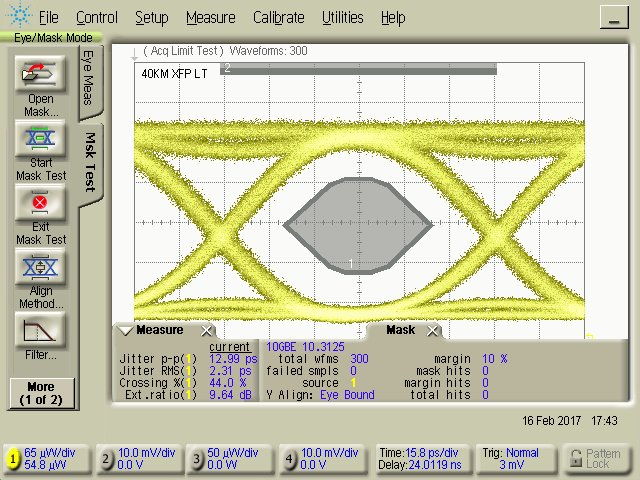

三眼图
室温
低温
高温
