10GBASE-LR SFP+ for SDH/PDH 1310nm 10km Transceiver
10GBASE-LR SFP+ for SDH/PDH 1310nm 10km Transceiver
ATOP’s APSP31HM3xDL10 Small Form Factor Pluggable (SFP+) transceivers are compatible with SFF-8431,SFF-8432 and support SONET OC-192 /SDH STM-64 . It is designed for use in 10G-Gigabit multi-rate links up to 10km of G.652. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
产品指标
封装 :
SFP+
传输速率 :
10G
波长 :
1310nm
光器件 :
DFB/PIN
发光范围 :
-8.2~0.5dBm
收端灵敏度 :
-14.4dBm
接口 :
LC
工作温度范围 :
C/I
传输距离 :
10KM
多速率兼容 :
N
三眼图

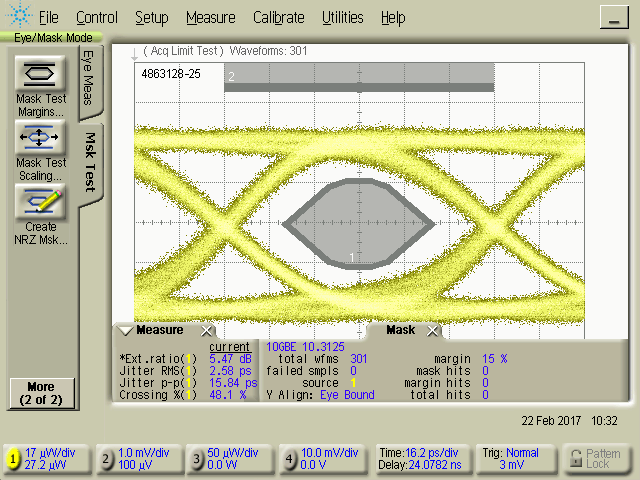

室温

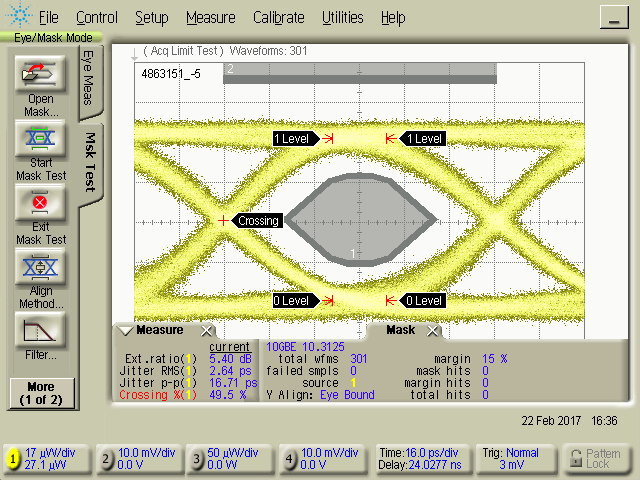

低温

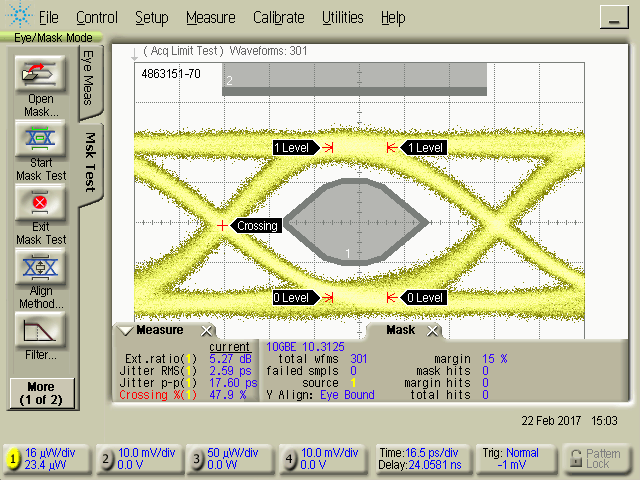

高温
