10GBASE-LR XFP for SDH/PDH 1550nm 10km Transceiver
ATOP’s APX55HM0xDL10 Small Form Factor 10Gb/s XFP transceivers are compatible with XFP MSA Specification. They comply with SONET OC-192 IR-2,OC-192 IR-3,SDH STM S-64.2b, STM S-64.3b as well as with 10G Ethernet 10G BASE-LR/LW per IEEE802.3ae and 10km 10G Fibre Channel applications.
Request a Quote

10GBASE-LR XFP for SDH/PDH 1550nm 10km Transceiver

Product Features

Package:

XFP

Data Rate:

10G

Wavelength:

1550nm

Component:

EML/PIN

Output Power:

-3~+4dBm

Rec. Sens:

-15dBm

Connector:

LC

Case Temp.:

C/I

Reach:

10KM

Multi-rate:

Y

Application

10GBASE-LR/LW

10G Fibre Channel

SONET OC-192 /SDH STM-64

Download Data Sheet

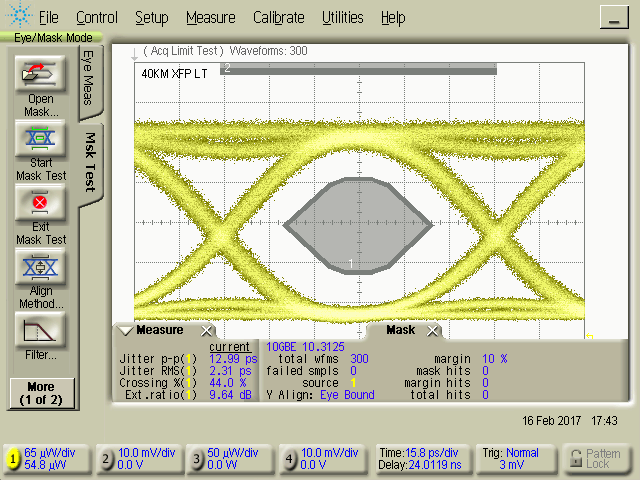

Eye Diagram

Room Temperature

Low Temperature

High Temperature
